Product Overview
The EDAN SE-301 is a compact 3-channel electrocardiograph designed for resting ECG acquisition in clinical and mobile environments. It simultaneously acquires 12 standard leads and features a 5-inch color touchscreen, built-in thermal recorder, rechargeable battery, and EDAN SEMIP® ECG analysis algorithm.
Product Features
- 5-inch, 800 × 480 multicolor LCD touchscreen for intuitive operation.
- Simultaneously acquires all 12 standard ECG leads with a 24-bit A/D converter.
- 0.01–300 Hz frequency response and 16,000 Hz sampling frequency support detailed ECG acquisition.
- Built-in thermal recorder supports multiple paper speeds and 80 mm recording paper.
- Supports Ethernet and optional Wi-Fi for bi-directional communication with the SE-1515 Data Management System.
Product Specifications
| SKU/Catalog Number | MF-SE-301 |
| Product Name | SE-301 3-Channel ECG Machine |
| Brand | EDAN |
| Manufacturer | EDAN Instruments |
| Model | SE-301 |
| Product Type | 3-Channel Electrocardiograph |
| ECG Leads | 12 Standard Leads |
| Acquisition | Simultaneous 12-Lead |
| A/D Converter | 24-bit |
| Display | 5" Multicolor LCD Touchscreen |
| Display Resolution | 800 × 480 |
| Heart Rate Range | 30–300 bpm |
| Heart Rate Accuracy | ±1 bpm |
| Frequency Response | 0.01–300 Hz |
| Sampling Frequency | 16,000 Hz |
| CMRR | ≥140 dB |
| Recorder | Thermal Dot-Matrix |

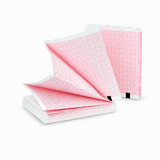

| Recording Paper | 80 mm × 20 m Roll or 80 mm × 70 mm Folded Paper |
| Paper Speeds | 5, 6.25, 10, 12.5, 25, 50 mm/s |
| Report Formats | PDF, XML, DICOM, FDA-SCP |
| Data Transmission | Ethernet, RS232, Wi-Fi, 4G |
| Wi-Fi | Optional |
| Battery | Rechargeable Li-Ion, 14.8 V, 2500 mAh |
| Battery Performance | Up to 5 Hours Continuous Printing / 500 ECG Reports |
| Dimensions | 224 × 143 × 54 mm |
| Weight | 1 kg, excluding battery and recorder paper |
| Application | Resting Electrocardiography |
| Packaging | Item/1 |
| UOM | Each |
