Product Overview

RVS-200 is a versatile, integrated modular wall diagnostic station which like the RVS-100 measures pulse rate (PR), oxygen saturation (SpO2), non-invasive blood pressure (NIBP) and temperature (oral / axillary probe) with the additional option to add ophthalmoscopes, otoscopes and dermatoscopes. The flexible, modular design offers many configurations and settings to suit the needs of hospitals and clinics as well as office based and long-term care settings.

Product Features

Features and Benefits – Hardware

  • Large 8“ full HD colour TFT-LCD screen displays large numbers and bright colour-coded parameters so that vital signs can be seen clearly and interpreted easily.

  • Screen is visible in both dark and lit rooms.

  • The touch screen and intuitive user interface makes it quick and easy for patient information to be entered and settings amended as required.

  • The modular design is chosen by the customer around their needs, starting with the choice between a table/mobile stand or wall mounted, through to the optional accessories like a printer.

  • Can be plugged into the mains or powered off the battery for 17 hours.2

  • Riester is committed to providing reliable clinical measurements, including the choice of SpO2:

    • Riester
    • Nellcor
  •

  • Integrated specula dispenser for the otoscope and nasal specula with 5 tubes for 5 different sizes of specula, dispenses a new specula for each examination and is easy to re-fill and disinfect.

Features and Benefits – Software
  • RVS-100 is programmed with EWS: NEWS, MEWS and 5 customizable profiles which can be set by the end-user if they have bespoke requirements.
  • Serve a large patient population with the ability to save up to 1000 patient records, with up to 5000 measurements per patient.
  • Can be used on all patient types: adult, paediatric and neonate.
  • RVS-100 can communicate through a wired or wireless connection to the hospital’s EMR/EHR, according to the HL7 standard.
  • Software languages available: Chinese, Danish, English, French, German, Italian, Polish, Portuguese, Spanish (Europe) and Traditional Chinese
SKU/Catalog Number MF-RSV-200
Product Name RVS-200 Integrated Modular Wall Diagnostic Station
Brand Riester
Model RVS-200
Product Type Integrated Modular Wall Diagnostic Station
Display 8" Full HD Color TFT-LCD Touchscreen
NIBP Included
SpO₂ Included; Riester or Nellcor options available
Pulse Rate Included
Temperature Oral / Axillary
Patient Types Adult, Pediatric, Neonatal
Operating Profiles Monitor, Spot Check, Triage, Demo
Instrument Capacity Up to 5 Instrument Heads
Optional Diagnostic Instruments Otoscope, Ophthalmoscope, Dermatoscope
Patient Records Up to 1,000 Patients
Measurements Up to 5,000 Measurements per Patient
Connectivity Wired or Wireless EMR/EHR Connectivity via HL7
Power Mains or Battery
Battery Operation Up to 17 Hours
Mounting Wall-Mounted
Application Vital Signs Monitoring and Physical Assessment
UOM Each

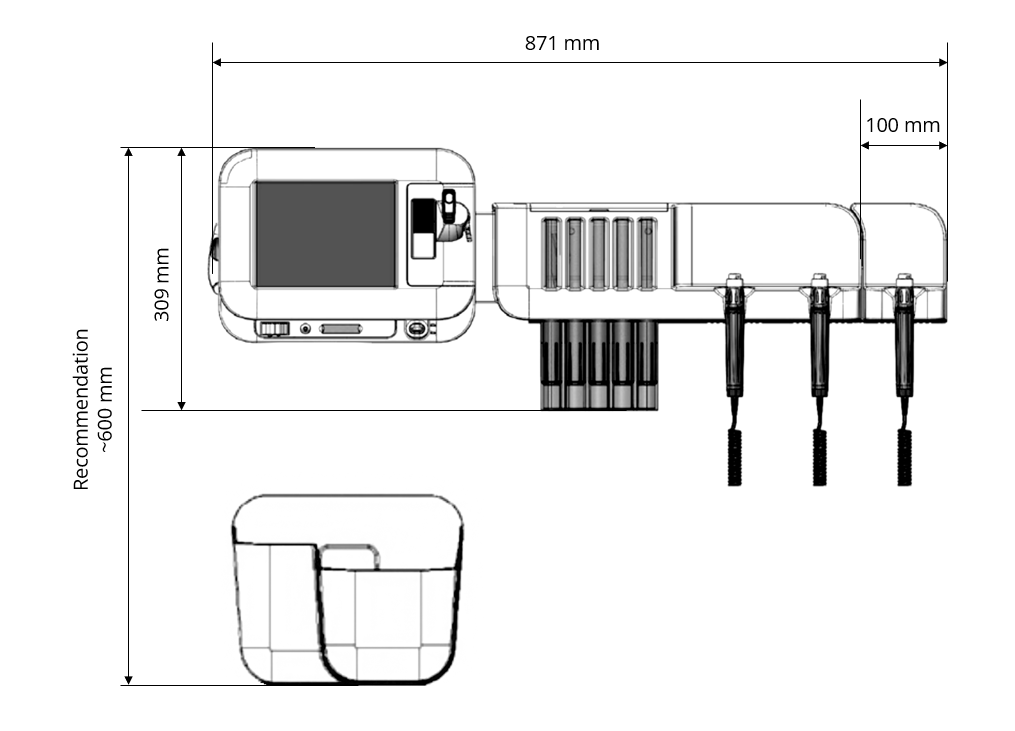

Space Requirement



600mm = 23,622 inch, 309mm = 12,165 inch, 871mm = 34,291 inch, 100mm = 3,937 inch
Power Supply 100 - 240 V AC, 50/60 Hz
Battery Lithium-Ion battery, rechargeable, 10.8 V DC, 6600 mAh. Charging time to a 100%: 6 hours, Operating time approx. 11 hours (new and fully charged battery at 25 °C ambient temperature with connected SpO2, Temp, and NIBP on AUTO mode (15 minutes interval), Low battery indicator, Charging battery indicator
Monitor Dimensions 303 x 230 x 110 mm (11.93 x 9.05 x 4.33 in)
Monitor Weight 3600 g (7.94 lb) inc. temperature module, printer
Basket Dimensions 270 x 225 x 200 mm (10.63 x 8.86 x 7.87 in)
Alarm Visible LEDs (Yellow, Red, Blue, Green, Orange) Audible Speaker, Gives audible alarm, QRS tone. Supports Pitch Tone and multi-level volume. Alarm tones meet the requirement of IEC 60601-1-8. Alarm Pressure: 45 dB to 85 dB test distance is 1 meter from the tone
Port 1 x AC power inlet
1 x standard RJ45 interfaces.100 BASE-TX, IEEE 802.3
4 x USB ports
1 x Equipotential grounding point
1 x RJ11 connector for nurse call
DC out port 15 V/1.2 A
